PEX tubing is also very easy to bend. To help PEX tubing make turns, you have a choice of three methods: 90-degree elbows, bend supports, and clamps.

Does PEX need to be strapped?

Long runs of PEX pipe have to be supported with proper hangers. It is generally recommended to fasten the tubing at every 32 inches when running it alongside a joist and at least every 6 feet if the tubing is supported by beams and running across them.

How far can you bend PEX pipe?

PEX tubing can be bent slightly to accommodate curves. But do not bend the tubing tighter than a radius that’s six times the size of the tube. For example, a 1/2-inch tube can have a three inch bend radius. All 90-degree turns should have bend supports.

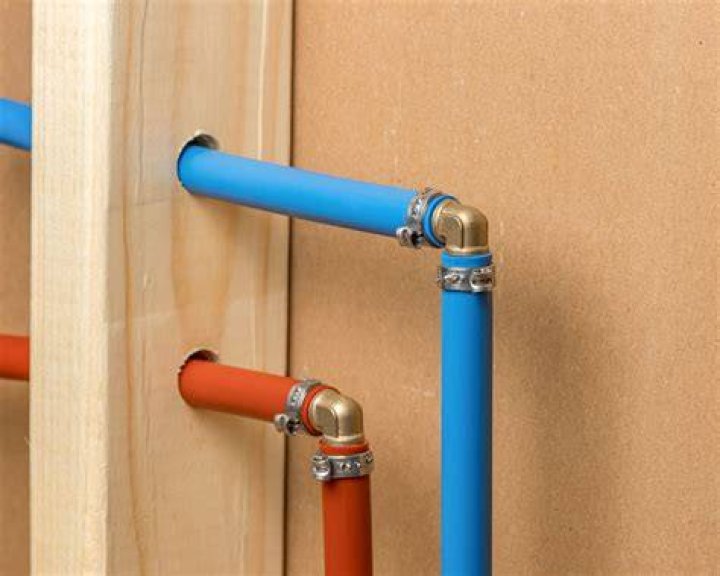

Should I bend PEX or use elbows?

Use PEX bend supports instead of elbows. Bend support allows to make a 90-degree turn with PEX tubing without the need for a fitting.

Can You Heat PEX with a heat gun?

Visit Bending pex? You can heat it with a heat gun and it will stay where you cool it. But I don’t think that is the answer to your problem. Very hot water might make it lose the shape you wanted. The metal bend supports, copper stub ells, or something else might be the fix.

What can I do to make my PEX tubing Bend?

Though PEX tubing bends well, it can crimp if it is bent improperly. Start by warming up the PEX tubing, either by letting it sit in a warm room or by using a heat-gun at the lowest temperature setting. Push the PEX tubing into one side of the bend support.

What’s the best way to straighten new PEX pipes?

If you mean the drain valve on the water heater it won’t work unless you actually drain the tank. Leaving the cold water feed on the drain will turn cold after a couple of gallons. Fill your tub or a container, larger than the PEX roll, with hot water and let the PEX sit in it . Should soften it enough to unroll.

What to do if your PEX tubing crimps?

Though PEX tubing bends well, it can crimp if it is bent improperly. Start by warming up the PEX tubing, either by letting it sit in a warm room or by using a heat-gun at the lowest temperature setting. Push Into One Side of Bend Support Push the PEX tubing into one side of the bend support.
