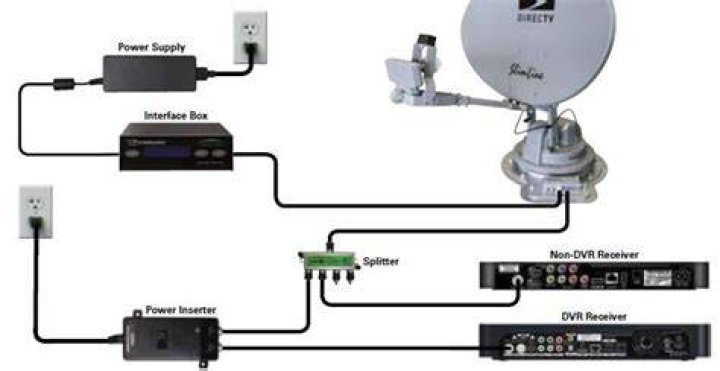

DIRECTV specs suggest connecting the power inserter one of three ways. On SWM-enabled dishes, a single line is run to a splitter. A cable is run from the red connection on the splitter into the “Power to SWM” connection on the power inserter. Then, a cable is run from the “Signal to IRD” connection to your receiver.
What is the purpose of a power inserter?
The purpose of a power inserter is to put power on a line being used for something else. If the power is flowing through its own line, that means the thing is a power adapter. If it’s flowing through a line used for something else (like your antenna or satellite cable) it’s a power inserter.
What is a power inserter dish?
We call it the PI-29 Power Inserter, and its purpose is to provide power to the electronics inside your dish or multiswitch. The dish on your roof is a lot more than just an antenna. The part on the front is called an LNB, meaning “Low Noise Block.” It takes the signal coming from the satellites and amplifies it.
What is directv SWM adapter?
The DirecTV Single Wire Multiswitch (SWM) is a specially designed piece of hardware that allows a DirecTV satellite dish signal to be split and used with many different tuners/receivers. The satellite dish had to send out a dedicated line that would power a single tuner/receiver.
Do I need a power inserter for my DirecTV?
Do I need a power inserter for my directv? The current generation of DIRECTV’s Genie, the HR54 4K Genie DVR, makes this problem go away. It can supply the 29 volts needed to power the dish if needed. That means no power inserter.
Does a DirecTV dish need power?
All dishes need power. They’re receiving signals, amplifying them, and sending them down the line. In the case of modern DIRECTV dishes, they’re also acting as multiswitches, sending only the signals that have been requested by the receiver. It can supply the 29 volts needed to power the dish if needed.
How does a satellite dish get power?
2 Answers. Yes, satellite dishes are frequently powered by DC current over the coax connection. The DC power comes from a “line power inserter” which will attach somewhere to the coax before it reaches the TV’s. It may be a single connection or a splitter as well, but either design will connect to an outlet.
Do I need a power inserter for my directv?
How do I connect my SWM to DirecTV?
Connect the “Power to SWM” port on the Power Inserter to the “SWM1/PWR” port on the SWM8 Switch. Connect the “Signal to IRD” port on the Power Inserter to the DirecTV receiver. If you have more than one receiver and/or Genie Mini’s, then you will need a SWM Splitter.
How does a DirecTV SWM work?
The SWM has an input for an off-air antenna. The SWM can carry both DIRECTV satellite signal and off-air antenna signal. If you wish to use an off-air antenna, you will connect the off-air antenna directly into the SWM, and then all outputs from the SWM will carry the DIRECTV and off-air signal.
Why do you need a power inserter for DirecTV?
DIRECTV SWM systems use a power inserter to make sure there is enough power for all the electronics down the line.
What does the DirecTV pi-29z power inserter do?
The DIRECTV PI-29Z Power Inserter. This device is more than just a power supply. What it does is built into its name – it inserts power into a satellite line that also carries signal. (Yes, a satellite dish needs power in order for it to work.) This particular DIRECTV power inserter allows one cable to feed a satellite dish or multiswitch.
What is the SWM inserter installation diagram for DirecTV?
Directv Swm Power Inserter Installation Diagram. Amazon Directv asl 1 Swm Alignment Signal Locator tool for. Various information and pictures about the diagram. Informasi diagram yang bisa dicari seperti wiring, foot, body, flower, earth, tape, venn, heart, parts, scatter, animal, home.
Where is the swim port on a DirecTV switch?
SWiM Power inserters – The IRD port must be terminated if not used as part of ( switch) uses a 29vdc version. The SWiM port is color coded in RED. S W M of dB losses and dBm power within a DIRECTV installation, charts such as what.Directv Swm Power Inserter Installation Diagram. Directv Swm Power Inserter Installation Diagram.
