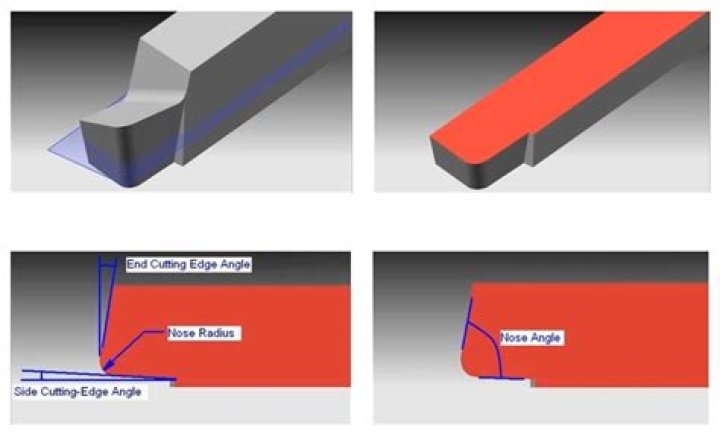

1: Side Cutting Edge Angle:
- The angle between side cutting edge and the side of the tool shank is called side cutting edge angle.
- The angle between the end cutting edge and a line perpendicular to the shank of the tool shank is called end cutting edge angle.
What are the advantages of a large side cutting edge angle?
Side cutting edge angle lower impact load and effect feed force, back force, and chip thickness. At the same feed rate, increasing the side cutting edge angle increases the chip contact length and decreases chip thickness. As a result, the cutting force is dispersed on a longer cutting edge and tool life is prolonged.
What is the function of end cutting edge?
The end cutting edge angle avoids interference between the machined surface and the tool (end cutting edge). Usually 5°– 15°. Decreasing the end cutting edge angle increases cutting edge strength, but it also increases cutting edge temperature.
What is cutting angle?
: the angle between the cutting face of a cutting tool and the surface of the work back of the tool.
What is angle between the side of the cutting edge to top face of the tool width wise?
Explanation: End cutting angle is the angle between end cutting edge and axis of tool. 5. Angle between side cutting edge and end cutting edge in the top surface plane of tool. Explanation: Nose angle is the angle between side cutting edge and end cutting edge.
In which cutting the cutting edge of the tool is inclined at an angle other than 90 degree?
In oblique cutting, the cutting edge of the tool is inclined at an angle less than 90° to the direction of tool travel.
What happens when rake angle is zero?
Zero Rake Angle: As the name denotes zero rake angle that means there will no angle between the rake surface and cutting plane. Here the face of the cutting tool makes a 90-degree angle about the cutting edge at the inner side. Advantages of using Zero Rake Angle: Neutral cutting power consumption happens.
What is the optimum value of side cutting edge in degrees for maximum tool life 2 points?
Right Answer is: D Explanation: At 30 degree chip removal rate and strength of tool are optimum and hence tool life will be maximum.
What is the meaning of edge cutting tools?
1. edge tool – any cutting tool with a sharp cutting edge (as a chisel or knife or plane or gouge) adz, adze – an edge tool used to cut and shape wood. ax, axe – an edge tool with a heavy bladed head mounted across a handle.
What is edge cutting tools in carpentry?
Edge-cutting tools usually have padded or insulated handles. They’re typically asking for a tool with two knife-like edges at the ends, joined by an axle. With two handles to provide leverage, the cutting edges pinch together to cut wires, plastic, wood, nails, staples or just about anything else you can imagine.
What are the effects of side cutting edge angle?
Effects of Side Cutting Edge Angle (Lead Angle) 1. At the same feed rate, increasing the side cutting edge angle increases the chip contact length and decreases chip thickness. As a result, the cutting force is dispersed on a longer cutting edge and tool life is prolonged.
What is the edge angle of a knife?
What is edge angle? Simply put, the edge angle is the angle at which the cutting edge is cut into the side of the knife to form the sharp tip. It’s measured from the centerline of the knife (indicated by the tip) to the outer edge of the spine. The image below will help explain.
What’s the name of the angle on a cutting tool?
It is the angle between the face of the tool and plane parallel to its base. It is also known as front rake angle or top rake angle. (ii) Side Rake Angle: It is the angle between the face of the tool and the shank of the tool.
Which is the best cutting edge angle for roughing?
Small end cutting edge angle for roughing and large angle for finishing are recommended. Cutting edge inclination indicates inclination of the rake face. During heavy cutting, the cutting edge receives an extremely large shock at the beginning of each cut.
