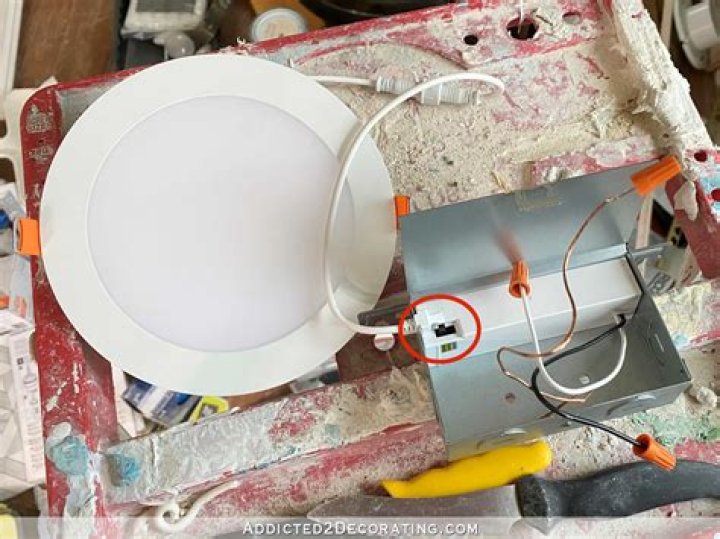

How do you install recessed lights in an existing circuit?

You can usually install a light fixture between an existing one and the switch by cutting the cable to the existing fixture at the location of the new one, inserting the ends of the cable into the electrical box for the new fixture and pigtailing the new fixture onto these wires.

Do you need a junction box for recessed lights?

Types of Devices That Don’t Need Boxes The first clue that a device is designed to be used without a junction box is that it has its own complete housing. Common examples of electrical devices that require no junction boxes include: Recessed lights (“can lights”)

Can you daisy chain recessed lights?

You can not daisy chain multiple lights together. If you are using aspectLED Ultra-Thin extension cables, always purchase the appropriate length cable and never connect multiple extension cables together.

How many wires can be in a recessed light box?

National Electrical Code NEC 314.16 and Box Fill Specifically, the documentation states that the light fixture electrical junction box may accommodate up to eight 12 gauge copper wires.

What’s the best way to install recessed lighting?

Cut the hole with a drill with a hole-cutting attachment and mark all light locations. Make sure you do not snag any wires that may be in the ceiling cavity. If you have an existing light fixture that you are replacing, disconnect it before you begin the process of how to wire recessed lights.

How do you wire a recessed light switch?

All of the white wires are twisted together before screwing on the wire-nut. For the ground wires, since they must be tied together and also tied to the switch, a third bare copper is twisted with the two wires in order to go to the switch. The black wires and ground wire are curled in the same direction that the screws turn as they tighten down.

How do you drill a hole in the ceiling for recessed lighting?

Use a stud finder to make sure the holes do not overlap a joist. Drill a 1/4-inch hole in the ceiling at the center of the planned opening. If necessary, go into the attic and make sure there are no wires, pipes or ductwork behind the planned opening.

What’s the best way to wire a light?

Wire the Light Open the light’s junction box. Run cable into the box and clamp it. Strip insulation and make wire splices, black to black, white to white, and ground to ground. Fold the wires into the box and replace the cover.
