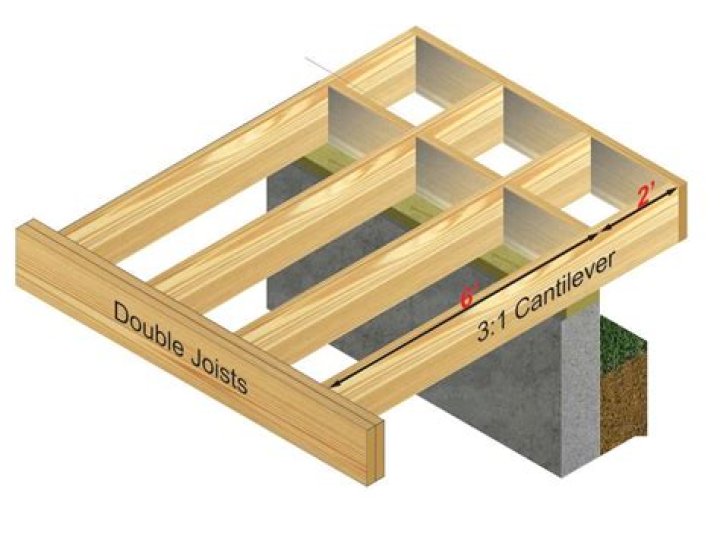

Good working rule is that a cantilever should not exceed 4 times the height of the joists. 2×8= 7.25 inches high x 4 = 29 inches. If the code span tables allow a 2×8 to span 12 feet, then the cantilever can be 3 feet.
How far can a 2×6 floor joist cantilever?
Looking at the table below, we see that 2×6 floor joists can be cantilevered up to 2 feet and 6 inches (2′-6″) when the joists are spaced 16″ apart.
What is the maximum cantilever length?
What is the maximum span of cantilever beams? Usually, for small cantilever beams, the span is restricted to 2 m to 3 m. But the span can be increased either by increasing the depth or using a steel or pre-stressed structural unit.
How far can a beam be cantilevered?
*Beams may cantilever at each end up to ¼ of the of the actual beam span. For example, a 16′ beam span can cantilever a maximum of 4′.
How far can a double 2×8 span without support?
When supporting joists that span 12 feet with no overhang beyond the beam, a double ply beam can span in feet a value equal to its depth in inches. A double 2×12 beam can span 12 feet; a (2) 2×10 can span 10 feet and so on….How far can you span a double 2×8 beam?
| Header Size | Maximum Span | Number of Trimmers |
|---|---|---|
| Double 2×12 | 7 ft., 1 in. | Two |
How far can a 2×6 floor joist span without support?
2-grade 2×6 joists can span up to 10 feet 9 inches from beam to beam when spaced the standard 16 inches apart with a maximum live load of 30 inches per square foot. In comparison, No. -1 grade lumber can span slightly further to 10 feet 11 inches under the same parameters.
How long can a cantilever slab be?
The maximum length of cantilever slab shouldn’t be more than 2m or 6–6.5 ft. The thickness of slab should also satisfy span/ effective depth ratio of 7 required for cantilever slab.
What is the maximum length of beam?
The maximum beam size is 1016x305x487ub and the maximum span is 75m. If you space the beams 3m apart and have a small snow load on top, you can do this.
How big of a joist can you cantilever?
This means that joists, such as southern pine 2x10s at 16 inches on-center, spanning 12 feet are allowed to cantilever up to an additional 3 feet (see illustration, below). People also ask, how far can you cantilever a 2×8 deck joist?
How big can a joist be on a deck?
Deck Joist Cantilever Rules and Limits. The distance your joists can safely cantilever or overhang a drop beam is determined by the size of the joists, the wood type and grade of the lumber and the spacing between joists. Many building departments limit joist cantilevers to 24″ maximum.
How big can a cantilever be on a deck?
According to the new span tables and IRC provisions, cantilevers can extend up to one-fourth the backspan of the joist. This means that joists, such as southern pine 2x10s at 16 inches on-center, spanning 12 feet are allowed to cantilever up to an additional 3 feet (see illustration, below). Click to see full answer.
How big of a cantilever can I use on a drop beam?
The distance your joists can safely cantilever or overhang a drop beam is determined by the size of the joists, the wood type and grade of the lumber and the spacing between joists. Many building departments limit joist cantilevers to 24″ maximum.
