Features
| Thermal Resistance | R22 hr.ft2.F/Btu (3.87 m2K/W) |
|---|---|
| EPS Panel Thickness | 2.5” (63.5mm) |
| Web Spacing | 6” (152mm) on center |
| Available Core Sizes | 4” (102mm), 6” (152mm), 8” (203mm) at 16” (406mm) high & 10” (254mm), 12” (305mm) at 24” (610mm) high |
What is the minimum thickness of an ICF wall?
STC Ratings Using Nudura ICF Walls When considering the selection of forms for demising or tenant separation walls between suites and along corridors, the minimum concrete core thickness wall needs to be 6-inches (152 mm).
What is the R value of an ICF wall?
Nudura Insulated Concrete Forms have a tested R-Value of 23.59.
Are ICF walls load bearing?

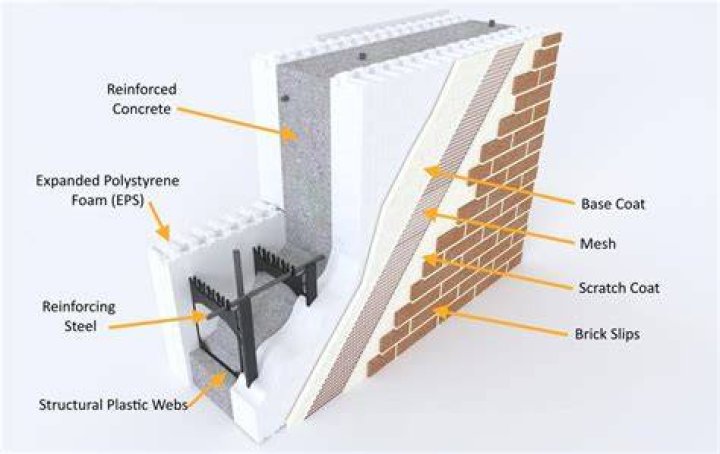

ICF walls are made up of two layers of rigid insulation held together with ties to form ICF form units with a cavity in the center. The combination of reinforced concrete and insulation provides an ideal load bearing wall, thermal envelope, fire barrier and sound barrier.
How much are ICF blocks?
Insulated concrete forms (ICFs) are typically purchased from a local building supplier. Currently, the purchase price of a regular 16” x 48” styrofoam ICF block is in the $21-$24 range, depending on what region/country it is purchased in. This translates to about $4.00 – $4.50 per SF of wall area.
How much concrete do I need for ICF?
STANDARD ICF
| STANDARD ICF | $13.95,$15.95 or $17.95 |
|---|---|
| Concrete | $100.00 Per yard (1 yard fills 10.5 blocks) |
| Labor | $30.00 per hour, 5 blocks per man hour |
| Re-bar | $.30 per foot |
| Pump | $250 minimum, Plus $3.00 per yard |
What size ICF do I need?
The 4″ (100 mm) form may be used for above grade walls up to a maximum of 10′ (3.0 m). The 6″ (150 mm) form, above grade, is limited to approximately 14′ (4.2 m) in height. Walls higher than 14′ (4.2 m) must use an 8″ (200 mm) or larger form. Typical residential construction will use 6″ or 8″ concrete core size blocks.
Is ICF worth the cost?
Is ICF Construction Less Expensive? Insulated concrete forms cost about $150 per square foot, which is 2% to 7% more than standard wood-frame construction. Overall, you’ll likely end up spending about 5% to 10% more in total construction costs than you would for a conventional wood-frame home.
How long will an ICF house last?
How long will an ICF structure last? Concrete walls built with Amvic ICFs may last in excess of 100 years with minimal maintenance required to the walls. This is at least 4 times longer than traditional construction.
How tall does an ICF wall need to be?
ICFs provide a reinforced concrete wall which is designed to specific engineering principles. Typical residential construction, per the applicability limits in the building code, allows walls 10′ (3 m) high or less between lateral supports (floor and roof connections).
How big is a wafle grid ICF wall?
The wafle-grid ICF wall system is a concrete wall composed of closely spaced vertical (maximum 12 inches (305 mm) on center) and horizontal (maximum 16 inches (406 mm) on center) concrete members with concrete webs (approximately 2 inches (51 mm) thick) in between the members.
What kind of building material is ICF made of?
Insulated Concrete Forms (ICF) are becoming a more common way to build homes. This innovative building material is typically made of blocks of polystyrene foam with space in between to pour a concrete wall.
How does the formwork of an ICF wall work?
Once braced, the formwork is simply filled with concrete. The expanded polystyrene panels stay in place, resulting in a super-insulated monolithic solid concrete structure.
