If you used two springs, you could have them back to back so one would travel 0 to 90 and the other 0 to -90, add stops so that they dob’t go past 0 and you can have a fair amount of force at the center and it is still bidirectional.
Which way do you wind torsion springs?
For a correct solution, a right-hand wound torsion spring should be mounted on one side, and a left-hand wound one on the other. A torsion spring must always be loaded in the direction of the spring wire so the spring body closes.

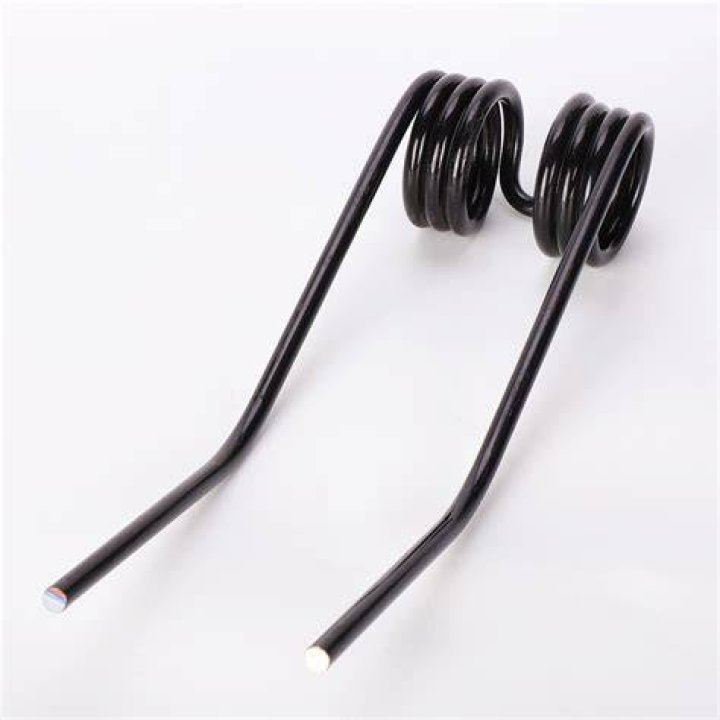

How does a double torsion spring work?
Torsion springs are a type of coil or helical spring that react to applied rotational forces, providing torque or using stored rotational energy when the spring is set, as the ends are rotated in angular deflection, commonly used over a supporting mandrel or arbor.
Do I need one or two torsion springs?
Torsion spring systems can use one or two springs. As a rule of thumb, a single garage door takes one torsion spring. A double-wide garage door takes two springs. However, if you have an exceptionally heavy single door, you may need two torsion springs.
How much weight can a torsion spring hold?
While garage door torsion springs can handle weights of up to 800 lbs. or more, the energy they conserve is sufficient to cause a major injury or even death.
Which is better torsion or extension springs?
Torsion springs tend to be stronger and more durable than extension springs. And though they are more expensive, they last longer, between 15,000 and 20,000 cycles as opposed to 10,000 cycles with extension springs. They also offer greater balance and show more control when moving, not jerking as the door moves.
Does torsion spring length matter?
Replacing a too-big or too-small torsion spring with the right size will balance the door and make it safe again. The door will rise with less effort and remain safely in place. The garage door opener may also need to be replaced if it has been damaged by springs that are too big or too small.
What’s the direction of wind in a torsion spring?
Each spring used in this manner has a particular wind direction: right-wound, left-wound or both. Using a right-wound spring where left-wound is needed will interfere with and perhaps prevent the operation of the door.
What does black mean on a torsion spring?
Black indicates left-wound, and red indicates right-wound. In order to make a door open, each spring must turn in a particular way. Likewise, to make a door close, they must turn in the opposite direction.
Where is the right wound on a torsion spring?
The right-wound spring will be located to the left of the cone—perhaps unintuitively—and the left-wound to the right. Furthermore, these springs should have colored markings near the end. Black indicates left-wound, and red indicates right-wound.
Where are the springs on a torsion cone?
The cue is the order of the springs from left to right. The right-wound spring will be located to the left of the cone—perhaps unintuitively—and the left-wound to the right. Furthermore, these springs should have colored markings near the end.
