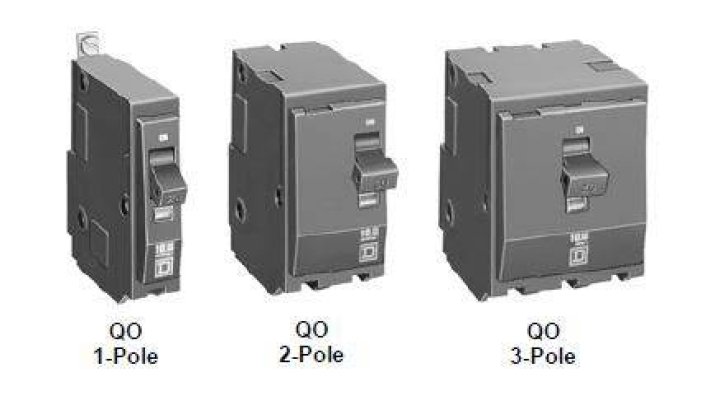

Used most often in a three-phase electrical system, a three-pole breaker connects three different conductors, such as is often required by heavy duty industrial motors. When a surge exists anywhere in the system, across one or more of the conductors, the breaker trips, the power bridge collapses, and the circuit opens.
How do you know if a circuit breaker is 3-phase?
If the voltage is at least 200 volts for three pairs of slots, the outlet is probably a three-phase outlet. Examine the circuit breaker for the outlet. A circuit breaker with three switches connected together so that all three must be turned on or off at the same time is a three-phase circuit breaker.
What is a three-phase breaker?
Description. The Three-Phase Circuit Breaker is a three-pole magnetic control circuit device that provides the following functions: Disconnect Switch: It provides a means whereby the conductors of a circuit can be isolated from their source of power. A single toggle handle operates all three poles.
What does a 3-phase plug look like?
Three-phase power is supplied by four wires. Three hot wires carrying 120 volts of electricity and one neutral. The three hot wires in a three-phase circuit are colored black, blue and red; a white wire is the neutral and a green wire is used for the ground. …
Can you put a 2-pole breaker in a 3-phase panel?
A 3-pole breaker used in place of a 2-pole breaker on a 3-phase system, such as a 2-pole breaker used in a branch circuit that is actually two legs of a 3-phase system, is acceptable without the 3-pole breaker being specifically marked.”
Is a 2-pole breaker 3-phase?
A double pole breaker has four terminals and is twice the width of a single pole breaker. Factories, workshops and commercial facilities, often have a 3-phase electrical supply.
When to use a 3 pole circuit breaker?
The 3-pole breakers are used for three-phase circuits where there is L1, L2, L3 and N wire. Normally, any residential users may use 120/240V single phase system, therefore they’d need 2-pole.
Do you have to ground a three phase circuit breaker?
The breakers are usually much larger than residential breakers. Three-phase power has three hot wires instead of one. There is no neutral wire to attach in this type of panel. Grounding is the same as for any other panel. Wiring a three-phase circuit breaker is simple.
Do you need ul marking for 3 phase breaker?
The UL Marking Guide quoted by John. says the only time markings would be required is if the 3 pole breaker was being used on a single phase service. No specific instructions are required for using 2 poles of a three pole breaker which is installed in a 3 phase system.
What’s the difference between 3 phase and 3 pole?
In electrical terms, 3 phase is defined as generation or use of a designed supply that uses three simultaneously separate alternating currents of the same voltage, but with phase voltages spaced at 120 degrees separation from one another. Home Science Math and Arithmetic
