Fuel nozzle types There are two types of fuel nozzles on PT6 engines — simplex and duplex. With simplex fuel nozzles, you have two different nozzles — primary and secondary. Each nozzle has a single orifice.

What are the types of fuel injector nozzles?

The fuel injection types used in newer cars include four basic types:

  • Single-point or throttle body injection.
  • Port or multipoint fuel injection.
  • Sequential fuel injection.
  • Direct injection.

What are engine nozzles?

All gas turbine engines have a nozzle to produce thrust, to conduct the exhaust gases back to the free stream, and to set the mass flow rate through the engine. The nozzle sits downstream of the power turbine. A nozzle is a relatively simple device, just a specially shaped tube through which hot gases flow.

What is nozzle and how it is classified?

A nozzle is a device designed to control the direction or characteristics of a fluid flow (especially to increase velocity) as it exits (or enters) an enclosed chamber or pipe. A nozzle is often a pipe or tube of varying cross sectional area, and it can be used to direct or modify the flow of a fluid (liquid or gas).

What is the fuel nozzle?

The pressure-atomizing unit that receives fuel under high pressure from the fuel manifold and delivers it to the combustor in a highly atomized, and precisely patterned spray. …

What is difference between injector and nozzle?

As nouns the difference between injector and nozzle is that injector is any of various devices that are used to inject something while nozzle is a short tube, usually tapering, forming the vent of a hose or pipe.

What are the two types of injector nozzles?

Two basic types of injection nozzles are manufactured:

  • pin nozzles – designated DC, DN ; mostly used in engines with indirect fuel injection (engines with precombustion chamber)
  • hole nozzles – designated DO, DL, DOP, DLLA; used in engines with indirect fuel injection.

What is Pintaux nozzle?

Pintaux Nozzle: This type of nozzle is a type of Pintle nozzle which has an auxiliary hole drilled in the nozzle body. It injects a small amount of fuel through this additional hole which is called pilot injection in upstream direction slightly before the main injection.

Does a nozzle increase pressure?

Originally Answered: Pressure is indirectly proportional to area, but in a nozzle, the area decreases but the pressure also drops which converts the same into velocity. But why does this happen. As by physics, pressure should be increasing but it decreases.

Which nozzle is used in rocket engine?

The bell type nozzle is the most commonly used shape in rocket engines. This category of nozzle provides significant benefits in terms of performance and size over the conical type nozzle. It has a high angle expansion section (20° to 50°) right behind the nozzle throat.

What are the different types of nozzles in IC engines?

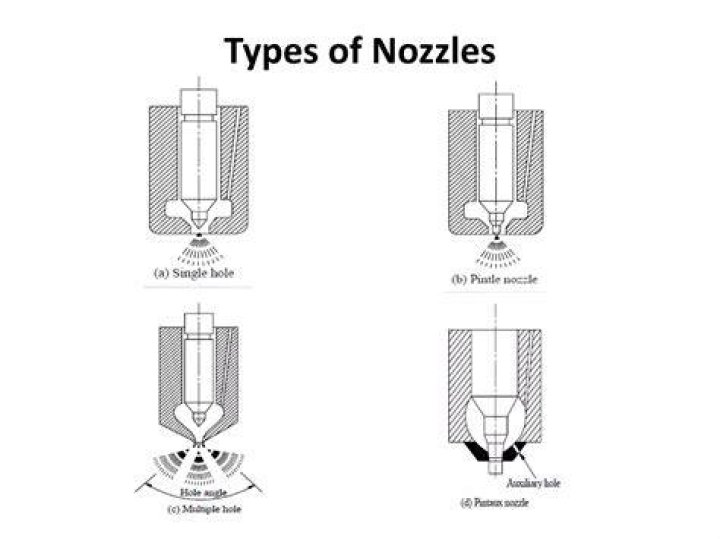

Types of Nozzle in IC Engine : Pintle Nozzle, Single Hole Nozzle, Multihole Nozzle, Pintaux Nozzle. Today we will learn about types of nozzle used in IC engines. Nozzle is that part of an injector through which the liquid fuel is sprayed into the combustion chamber.

What kind of nozzle is used in diesel engine?

Nozzle is that part of an injector through which the liquid fuel is sprayed into the combustion chamber. It is used in Diesel engine in which fuel is drawn separately through injector at end of compression stroke and air is drawn into cylinder in suction stroke. The nozzle used in IC engine should follow following functions.

What kind of nozzle is used for pilot injection?

This type of nozzle is a type of Pintle nozzle which has an auxiliary hole drilled in the nozzle body. It injects a small amount of fuel through this additional hole which is called pilot injection in upstream direction slightly before the main injection.

Which is better a multihole nozzle or a pintle nozzle?

The main advantage of this nozzle is better cold starting performance. A major drawback of this nozzle is that its injection characteristics are poorer than the multihole nozzle. This is all about types of nozzle used in IC engines. If you have any query regarding this article, ask by commenting.
