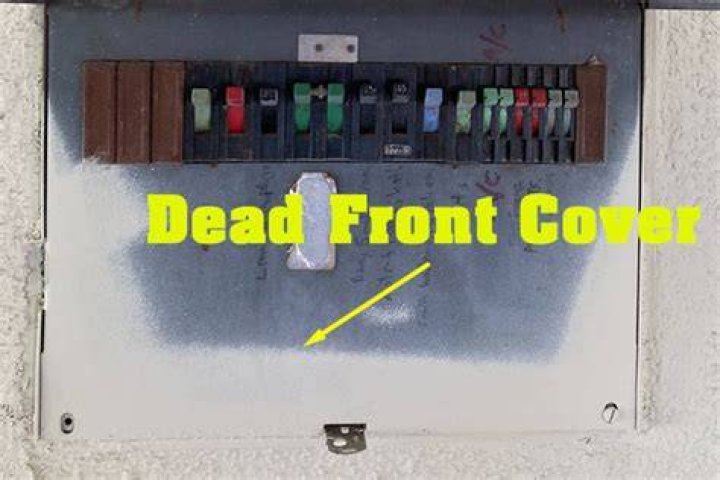

A dead front on a panel is the sheet metal cover that is perforated for all of the circuit breaker handles to be operated. There is usually an outer cover with a hinged door that has a latch over tgat. Tge circuit breaker handles are hidden from view while the door on the outer cover is closed.

What are dead fronts?

Per the Article 100 definition, electrical equipment is considered to be “dead front” when there are no live parts exposed to a person on the operating side of the equipment. In your case, there were exposed energized parts as you installed conductors.

What is a dead front connector?

The face of a dead front plug is either factory sealed, secured with screws, or openable only from the back, so that there is no possiblity of exposing live wires behind the plug prongs. It is an old-style plug and they have not been legal for sale in the US for many years.

What are the parts of an electrical panel?

Inside Your Main Electrical Service Panel

  • Behind the Panel Door.
  • Inside the Service Panel.
  • Main Circuit Breaker.
  • Hot Bus Bars.
  • Neutral Bus Bar.
  • Main Bonding Jumper.
  • Ground Bus Bar.
  • Circuit Breakers.

How much clearance is required in front of an electrical panel?

Potential Hazards These regulations require accessibility to the front of electrical panels to have a minimum of three feet of clearance and a minimum width to be the width of the equipment or 2.5 feet, whichever is greater.

What is a dead panel?

An electric panel will generally have one or two covers. Panels with two covers have an outer cover (which will open to the side or upwards) and an inner cover, called a “Dead Front”. The dead front cover normally has the slots / knockouts for the breakers to fit into.

Why is it called a dead front?

It is called a “Dead Front” for a reason When the “Dead Front” is missing, the wiring, breakers and the bus bar is exposed. If a person comes into contact with or touches the live bus bar, a serious shock or injury could occur. Even death. That is how the name “Dead Front” came about.

What is a dead front GFCI used for?

It looks like a push-button wall switch to some people, but is actually a Ground Fault Circuit Interrupter (GFCI) device that provides shock protection for a remote appliance or receptacles, and is called “dead front GFCI” or sometimes “blank face GFCI.” One is shown above at left, next to a regular GFCI receptacle on …

Where should you use a dead front plug?

Dead front is defined in Article 100 of the NEC as being “without live parts exposed to a person on the operating side of the equipment.” Section 408.38 requires that panelboards be mounted in cabinets, cutout boxes or enclosures designed for the purpose and shall be dead front.

Which is an example of a dead front electrical panel?

This bare electrically energized parts are as example- the bus bars in panel, connection point of circuit breakers and all applicable connection to various electrical appliances in the panel. Dead Front: Without live parts exposed to a person on the operating side of the equipment.

When to replace ” dead front ” covers on electrical panels is?

Even death. That is how the name “Dead Front” came about. When the “Dead Front” is missing it is wise to replace it as soon as possible. Also, the main cover should be locked and tagged until the Dead Front is properly in place. A number of manufactures have replacement covers for their panels.

When do you not need dead front panel construction?

If there is any opening with a risk of electrical energized parts exposure to operator in electrical equipment, panel then it will not be dead front. So Dead front construction is required for any sorts of electrical equipment as per NFPA-70. Does Dead front construction is required for only 50 volts or more?

Why are my dead front panel covers missing?

Panels with a “Dead Front” cover may have missing twist outs. Dead front covers have rectangular shaped slots that breakers fit into. If the cover has slots that are open but no breaker in it then pests may enter the panel, or children or others may inadvertently stick a metallic item in the open space.
