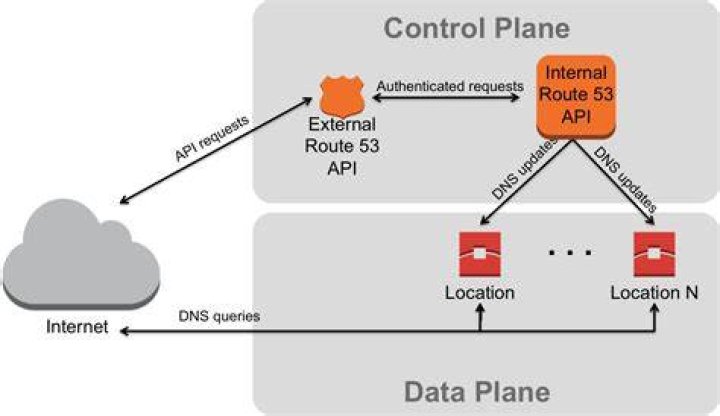

The data plane consists of physical servers where customers’ Amazon EC2 instances run. The control plane consists of a number of services that interact with the data plane, performing functions such as these: Receiving metering data, logs, and metrics emitted by the servers. Deploying new software to the servers.
What is a control plane in a network plane?
The control plane is the part of a network that controls how data is forwarded, while the data plane is the actual forwarding process.
What is the control plane used for?
In network routing, the control plane is the part of the router architecture that is concerned with drawing the network topology, or the information in a routing table that defines what to do with incoming packets.
What is control plane and user plane?
The data plane (sometimes known as the user plane, forwarding plane, carrier plane or bearer plane) carries the network user traffic. The control plane carries signaling traffic. Control packets originate from or are destined for a router. Moving the control plane to software allows dynamic access and administration.
What is control plane and data plane in Kubernetes?
Tl;dr—Both the data and control plane are integral components that make up a service mesh. The data plane forwards traffic to other services via sidecars, while the control plane handles configuration, administrative, security and monitoring related functions.
What is difference between control plane and data?
Control plane refers to the all functions and processes that determine which path to use to send the packet or frame. Data plane refers to all the functions and processes that forward packets/frames from one interface to another based on control plane logic.
What is the difference between user plane and control plane in LTE?
At user plane side, the application creates data packets that are processed by protocols such as TCP, UDP and IP, while in the control plane, the radio resource control (RRC) protocol writes the signalling messages that are exchanged between the base station and the mobile.
What is the main function of the data plane?
The data plane enables data transfer to and from clients, handling multiple conversations through multiple protocols, and manages conversations with remote peers. Data plane traffic travels through routers, rather than to or from them.
What is control plane in 5G?
The ‘control plane’ is the term used for all signalling used to support the. functions in the mobile telecommunications system that establish and maintain. Figure 1 A simple model of service access using the 3GPP system. Page 3. Path to 5G: A Control Plane Perspective 89.
What’s the difference between a data plane and a control plane?
Data plane refers to all the functions and processes that forward packets/frames from one interface to another based on control plane logic. 02. It is responsible for building and maintaining the IP routing table. It is responsible for forwarding actual IP packet. 03. Control plane responsible about how packets should be forwarded.
Which is an example of a control plane?
1 Control Plane. The control plane is generally considered to be where a router or switch makes its decisions. 2 Data Plane. The data plane (or forwarding plane) is the high speed path through the router/switch. 3 Examples. A special case would be when the control and data planes span across a ‘fabric’. …
How are azure control plane and data plane operations different?
Azure operations can be divided into two categories – control plane and data plane. This article describes the differences between those two types of operations. You use the control plane to manage resources in your subscription. You use the data plane to use capabilities exposed by your instance of a resource type. For example:
How are control and data planes used in SDN?
In conventional networks, each of these planes are implemented into the firmware of a router. In software-defined networking (SDN), the control and data planes are decoupled, allowing for greater flexibility and dynamic control of the network architecture. Both control and data planes can then be managed through software controls.
