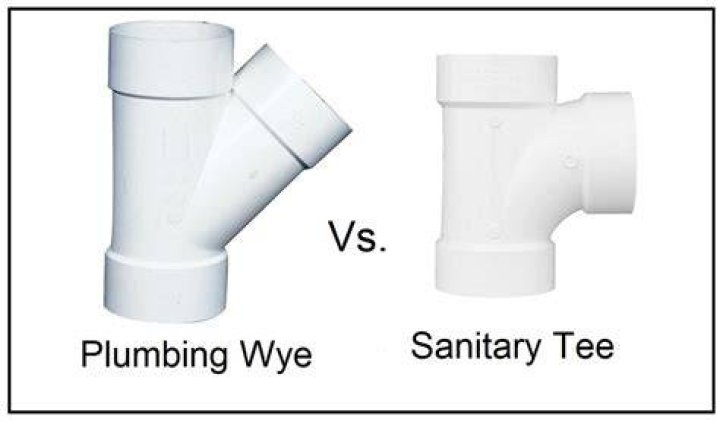

A sanitary tee is shaped like the letter ‘T’, while a Wye is similar to ‘Y’. Sanitary tee is used for horizontal to vertical transition, and Wye is used for combining 2 lines into one horizontal line to maintain a flow without causing clogging. Both of these fittings have different usage and can not be switched.
Can I use a wye for a cleanout?
Yes. That fitting has to go too. For sure with a pumped 2″ line from the sewage ejector, it has to be a wye.
Can you use a tee Wye on its back?
When using sanitary tees they may not be installed on its back with the side opening in a vertical position. The purpose for why this is not good is that when the waste hits the bottom of the horizontal pipe it will splash back upstream in the horizontal pipe.
What angle is a wye fitting?
45 degree angle
A wye joins branch lines. The side inlet pipe enters at a 45 degree angle. One pipe can be joined to another at a 45 degree angle with a standard wye.
Can a sanitary tee lay flat?
This is a sanitary tee and can only be used as shown in the vertical orientation. They are only used to go from the horizontal to vertical plane. If used flat (horizontal) they are prone to clogging. You must use a long sweep or wye+⅛ for horizontal DWV.
Can you put a sanitary tee on its side?
You cannot lay a sanitary tee on its side. Not only is this a code violation, but it is also unsafe. The design of the sanitary tee prevents wastewater from getting into clean water lines, and turning it sideways negates that feature.
Can you use a sanitary tee on its back for venting?
In other words when the solids and such come down the pipe they hit and splash on the bottom of the fittings instead of being directed downstream. Eventually this can cause a blockage to occur there. You absolutely can however, lay a san-tee on its back and use the run for venting only, no waste allowed.
What angle is a PVC Wye?
Sch 40 PVC wyes are designed to be inserted into a PVC line and leave you with a 45 degree angle off of the line. Wyes are commonly used when the need to divert media into a different direction than the normal flow of the system. Wyes come in standard glue ends and have many size options available.
What is lateral tee?
A Lateral tee is one kind of tee fittings, which has a 45 degree branch from a pipeline: (45° Lateral Tee). It is a kind of steel pipe tee, but the branch direction is different with the straight tee. On the contrary to the lateral tee,the straight tee has a branch pipe direction of 90 degree to the run pipe.
When to use sanitary tees with WYES and WYES?
A sanitary combo is a combination Wye & 1/8 bend already made in one fitting. The reason to form a long radius bend to insure the waste is directed in the downstream direction as it enters the horizontal run. A sanitary tee should be used when connecting a horizontal run, such as a waste arm to a vent stack or vertical riser.
What kind of fitting is a wye fitting?
Wye (Y) fitting It is a waste-fitting tee in which the side inlet pipe enters at a 45-degree angle. The connection is typically at a 45-degree, rather than 90 degrees; if a branch turns out further at the end to 90 degrees (perpendicular), the fitting becomes a combo tee. Click to see full answer.
What is the difference between pipe WYES and pipe Tees?
Pipe Wyes. Pipe wyes are used to to allow one pipe to join another pipe at some degree or angle. As the name suggests, the pipe wyes are Y-shaped pipe fitting devices. They are a popular type of pipe fitting used in various industrial applications. Pipe wyes and pipe tees: Pipe wyes are similar to pipe tees.
Which is the second type of pipe Wye?
The second is a pipe wye in a vertical position with three branches. The third one is a special type of pipe wye in the shape of a standard tee with a 45° bend and particularly recommended to be used in large-diameter piping.
