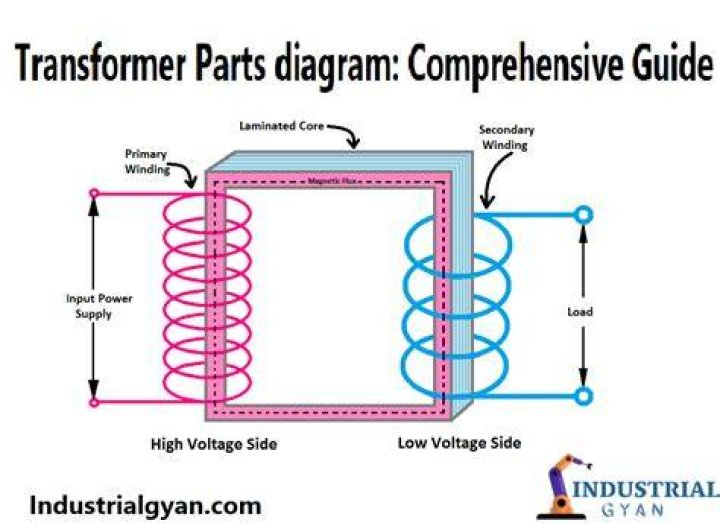

A transformer is an electrical device designed and manufactured to step voltage up or step down. Electrical transformers operate on the principle of magnetic induction and have no moving parts.
How do you tell if a transformer is going bad?
A bad transformer will have weak power or none at all. If there is power to the unit, it may not be faulty. However, if there is little or no power going to the unit, it may need replacement or repairs. A simple way to check the power is to turn the unit off and on again.
What is the most important part of a transformer?
Insulation Insulation is the most important part of transformers. Insulation failures can cause the most severe damage to transformers. Insulation is required between the windings and the core, between windings, between each turn of the winding and between all current-carrying parts and the tank.
What can damage a transformer?
Electrical failure typically involves line surges, which is a very common cause of transformer failure. Voltage spikes, switching surges and line faults are a few common culprits of electrical failure.
Does a boiler have a transformer?
However, most gas boilers you will be working on have 24-V controls. To get from 120 V to 24 V we use a transformer. This is the type of transformer you will find powering a gas valve. If we are going from 120 V to 10,000 V, we will have the amount of windings on the 120-V side times 83.333 to get the higher voltage.
What is the function of a furnace transformer?
The basic function of the furnace transformer is to supply power to the furnace itself. This can lower the high voltage capacity to a lower voltage output. This is required for Arc furnace operations.
How does a transformer work on an air conditioner?
The work of a transformer is to change the voltage that travels from the circuit board to the HVAC unit. This progression allows the air conditioner and the fan to work in synergy while cycling on and off. The usage of Electricity can be amplified or diminished depending on how much power is needed.
How to test a boiler ignition transformer at home?
How do you test a boiler ignition transformer? 1 Shut off the power to the oil burner. 2 Open the inspection panels to the burner, find the transformer and loosen it to where you can move it around. 3 Disconnect the power to the motor so no oil will come out while you check the transformer. 4 Return the power to the oil burner and turn it on.
What happens if you put the wrong voltage on a furnace transformer?
If you try to force the incorrect voltage, your furnace could be permanently damaged, which will come out costly. The same rule applies for any type of heater transformer. When you’re choosing a new furnace, you will find two different types of volts.
