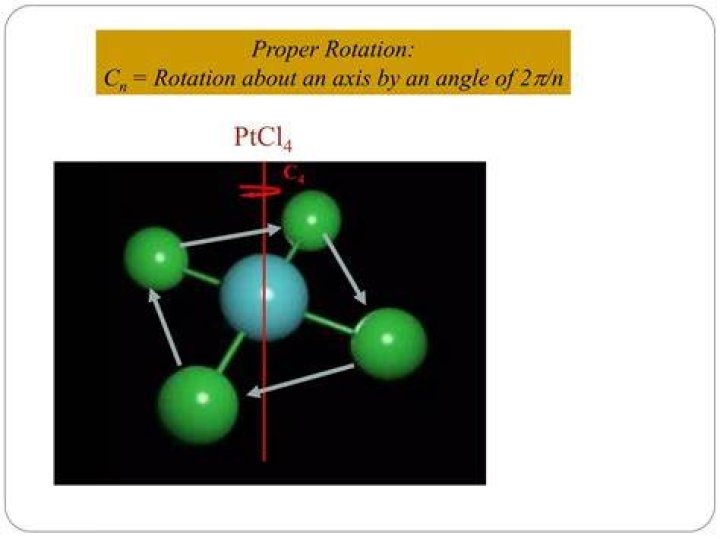

The axis with largest n is called the principal rotation axis. In the case of PtCl4 there are several other C2 axes in the molecular plane. A mirror plane including the principle axis is designated σv, those perpendicular are σh.
What is the geometry of PtCl4?
The Pt(II) aquo complex has a square planar geometry, oxygen atoms being located at 2.02 Å. Similarly, [PtCl4]2- units, both in aqueous solution and the solid state, are square planar, Pt-Cl distance being 2.30 Å.
What is the point group of boric acid?
Boric Acid contains a C3 rotation axis and σh symmetry. Hence it belongs in the C3h point group.
What is point group of cyclohexane?
The collection of symmetry elements present in a molecule forms a “group”, typically called a point group. Another molecule that also belongs to the C2v point group is cyclohexane in the boat conformation.
Which is principal axis in BF3?
C3 axis
For example, in BF3, the C3 axis is the principal axis. In some molecules, rotation axes of lower orders than the principal axis may be coincident with the principal axis.
Is Cl A strong or weak ligand?
Therefore, in general halogen or oxygen donors (eg-F-,Cl-,Br-,H2O) are weak field ligands and the ones in which carbon or nitrogen atom is the donor (eg-CN-,CO,NH3) are strong field ligands.
Why PtCl4 2 is diamagnetic?
Explanation:No. of unpaired electrons = 0So. [PtCl4]2- is diamagnetic. Due to which strong repulsion between the electrons of Pt and ligand takes place which result in strong crystal field splitting.
Why is the point group of PtCl4 square?
Also, why is ptcl4 square planar? Due to which strong repulsion between the electron of Pt and ligand takes place which result in strong crystal field splitting. The strong field splitting breaks the degeneracy of dx2- y2 and dz2 orbital. Hence stabilizes the square planer arrangement more than tetrahedral thus it should be square planar.
Where are high levels of PtCl4 found in the blood?
… (191)PtCl4 (25 uCi/animal) /was administered/ intravenously to 15 pregnant rats on day 18 of gestation to determine placental transfer after 24 hr. High levels of (191)Pt radioactivity were found in the kidney (127 064 counts/g) and liver (43 375 counts/g), compared with 10 568 counts/g in the blood.
Which is the point group of the XeF4 molecule?
For example, the XeF4 molecule belongs to the D4h point group. the XeF4 contains one C4 rotation axis, one C2 rotation axis, and four C2 perpendicular rotation axis, 2σv planes, 2σd planes and 1σh plane, those composed the character table of the D4h Point group. Also, why is ptcl4 square planar?
What is the point group of POCl3 called?
PCl3 is trigonal pyramidal (use VSEPR theory) and so possesses the same symmetry elements as NH3 in worked example 3.2. These are E, C3 and 3 v. BCl3 is trigonal planar (use VSEPR) and possesses all the above symmetry elements: In addition, BCl3 contains a h plane and three C2 axes (see Figure 3.2). what is POCl3 called?
